NEO4j Basic Commands

CREATE

Create a node


We will use Cypher to generate a small social graph.


CREATE (ee:Person {name: 'Emil', from: 'Sweden', kloutScore: 99})

() indicates the node.

ee:Person – ee is the node variable and Person is the node label.

{} contains the properties that describe the node.





MATCH

Find nodes

Now, find the node representing Emil.


MATCH (ee:Person) WHERE ee.name = 'Emil' RETURN ee;

MATCH specifies a pattern of nodes and relationships.

(ee:Person) is a single node pattern with label Person. It assigns matches to the variable ee.

WHERE filters the query.

ee.name = 'Emil' compares name property to the value Emil.

RETURN returns particular results.





Now, CREATE more data


Nodes and relationships


The CREATE clause can create many nodes and relationships at once.



MATCH (ee:Person) WHERE ee.name = 'Emil'
CREATE (js:Person { name: 'Johan', from: 'Sweden', learn: 'surfing' }),
(ir:Person { name: 'Ian', from: 'England', title: 'author' }),
(rvb:Person { name: 'Rik', from: 'Belgium', pet: 'Orval' }),
(ally:Person { name: 'Allison', from: 'California', hobby: 'surfing' }),
(ee)-[:KNOWS {since: 2001}]->(js),(ee)-[:KNOWS {rating: 5}]->(ir),
(js)-[:KNOWS]->(ir),(js)-[:KNOWS]->(rvb),
(ir)-[:KNOWS]->(js),(ir)-[:KNOWS]->(ally),
(rvb)-[:KNOWS]->(ally)


MATCH patterns


Describe what to find in the graph

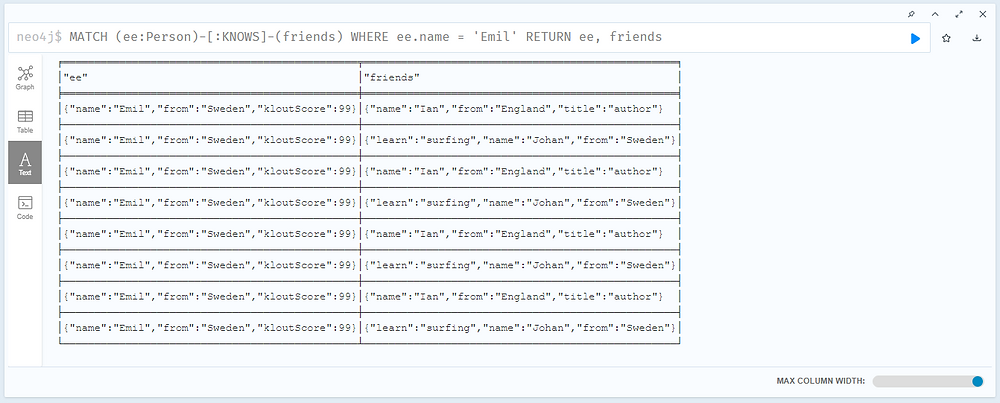

For instance, a pattern can be used to find Emil's friends:



MATCH (ee:Person)-[:KNOWS]-(friends)
WHERE ee.name = 'Emil' RETURN ee, friends

MATCH describes what nodes will be retrieved based upon the pattern.

(ee) is the node reference that will be returned based upon the WHERE clause.

-[:KNOWS]- matches the KNOWS relationships (in either direction) from ee.

(friends) represents the nodes that are Emil's friends.

RETURN returns the node, referenced here by (ee), and the related (friends) nodes found.





More Example,


Movie Graph Guide

The Movie Graph is a mini graph application, containing actors and directors that are related through the movies they have collaborated on. This guide shows how to:

  1. Load: Insert movie data into the graph.

  2. Constrain: Create unique node property constraints.

  3. Index: Index nodes based on their labels.

  4. Find: Retrieve individual movies and actors.

  5. Query: Discover related actors and directors.

  6. Solve The Bacon Path.


Create

Create the movie graph

Use the following code block to create the movie graph. It contains a single Cypher query statement composed of multiple CREATE clauses.

NOTE: This guide assumes that you use an empty graph. If it contains data, see page 9 on how to clean it up.




CREATE (TheMatrix:Movie {title:'The Matrix', released:1999, tagline:'Welcome to the Real World'})
      CREATE (Keanu:Person {name:'Keanu Reeves', born:1964})
      CREATE (Carrie:Person {name:'Carrie-Anne Moss', born:1967})
      CREATE (Laurence:Person {name:'Laurence Fishburne', born:1961})
      CREATE (Hugo:Person {name:'Hugo Weaving', born:1960})
      CREATE (LillyW:Person {name:'Lilly Wachowski', born:1967})
      CREATE (LanaW:Person {name:'Lana Wachowski', born:1965})
      CREATE (JoelS:Person {name:'Joel Silver', born:1952})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrix),
      (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrix),
      (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrix),
      (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrix),
      (LillyW)-[:DIRECTED]->(TheMatrix),
      (LanaW)-[:DIRECTED]->(TheMatrix),
      (JoelS)-[:PRODUCED]->(TheMatrix)

      CREATE (Emil:Person {name:"Emil Eifrem", born:1978})
      CREATE (Emil)-[:ACTED_IN {roles:["Emil"]}]->(TheMatrix)

      CREATE (TheMatrixReloaded:Movie {title:'The Matrix Reloaded', released:2003, tagline:'Free your mind'})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrixReloaded),
      (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrixReloaded),
      (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrixReloaded),
      (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrixReloaded),
      (LillyW)-[:DIRECTED]->(TheMatrixReloaded),
      (LanaW)-[:DIRECTED]->(TheMatrixReloaded),
      (JoelS)-[:PRODUCED]->(TheMatrixReloaded)

      CREATE (TheMatrixRevolutions:Movie {title:'The Matrix Revolutions', released:2003, tagline:'Everything that has a beginning has an end'})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Neo']}]->(TheMatrixRevolutions),
      (Carrie)-[:ACTED_IN {roles:['Trinity']}]->(TheMatrixRevolutions),
      (Laurence)-[:ACTED_IN {roles:['Morpheus']}]->(TheMatrixRevolutions),
      (Hugo)-[:ACTED_IN {roles:['Agent Smith']}]->(TheMatrixRevolutions),
      (LillyW)-[:DIRECTED]->(TheMatrixRevolutions),
      (LanaW)-[:DIRECTED]->(TheMatrixRevolutions),
      (JoelS)-[:PRODUCED]->(TheMatrixRevolutions)

      CREATE (TheDevilsAdvocate:Movie {title:"The Devil's Advocate", released:1997, tagline:'Evil has its winning ways'})
      CREATE (Charlize:Person {name:'Charlize Theron', born:1975})
      CREATE (Al:Person {name:'Al Pacino', born:1940})
      CREATE (Taylor:Person {name:'Taylor Hackford', born:1944})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Kevin Lomax']}]->(TheDevilsAdvocate),
      (Charlize)-[:ACTED_IN {roles:['Mary Ann Lomax']}]->(TheDevilsAdvocate),
      (Al)-[:ACTED_IN {roles:['John Milton']}]->(TheDevilsAdvocate),
      (Taylor)-[:DIRECTED]->(TheDevilsAdvocate)

      CREATE (AFewGoodMen:Movie {title:"A Few Good Men", released:1992, tagline:"In the heart of the nation's capital, in a courthouse of the U.S. government, one man will stop at nothing to keep his honor, and one will stop at nothing to find the truth."})
      CREATE (TomC:Person {name:'Tom Cruise', born:1962})
      CREATE (JackN:Person {name:'Jack Nicholson', born:1937})
      CREATE (DemiM:Person {name:'Demi Moore', born:1962})
      CREATE (KevinB:Person {name:'Kevin Bacon', born:1958})
      CREATE (KieferS:Person {name:'Kiefer Sutherland', born:1966})
      CREATE (NoahW:Person {name:'Noah Wyle', born:1971})
      CREATE (CubaG:Person {name:'Cuba Gooding Jr.', born:1968})
      CREATE (KevinP:Person {name:'Kevin Pollak', born:1957})
      CREATE (JTW:Person {name:'J.T. Walsh', born:1943})
      CREATE (JamesM:Person {name:'James Marshall', born:1967})
      CREATE (ChristopherG:Person {name:'Christopher Guest', born:1948})
      CREATE (RobR:Person {name:'Rob Reiner', born:1947})
      CREATE (AaronS:Person {name:'Aaron Sorkin', born:1961})
      CREATE
      (TomC)-[:ACTED_IN {roles:['Lt. Daniel Kaffee']}]->(AFewGoodMen),
      (JackN)-[:ACTED_IN {roles:['Col. Nathan R. Jessup']}]->(AFewGoodMen),
      (DemiM)-[:ACTED_IN {roles:['Lt. Cdr. JoAnne Galloway']}]->(AFewGoodMen),
      (KevinB)-[:ACTED_IN {roles:['Capt. Jack Ross']}]->(AFewGoodMen),
      (KieferS)-[:ACTED_IN {roles:['Lt. Jonathan Kendrick']}]->(AFewGoodMen),
      (NoahW)-[:ACTED_IN {roles:['Cpl. Jeffrey Barnes']}]->(AFewGoodMen),
      (CubaG)-[:ACTED_IN {roles:['Cpl. Carl Hammaker']}]->(AFewGoodMen),
      (KevinP)-[:ACTED_IN {roles:['Lt. Sam Weinberg']}]->(AFewGoodMen),
      (JTW)-[:ACTED_IN {roles:['Lt. Col. Matthew Andrew Markinson']}]->(AFewGoodMen),
      (JamesM)-[:ACTED_IN {roles:['Pfc. Louden Downey']}]->(AFewGoodMen),
      (ChristopherG)-[:ACTED_IN {roles:['Dr. Stone']}]->(AFewGoodMen),
      (AaronS)-[:ACTED_IN {roles:['Man in Bar']}]->(AFewGoodMen),
      (RobR)-[:DIRECTED]->(AFewGoodMen),
      (AaronS)-[:WROTE]->(AFewGoodMen)

      CREATE (TopGun:Movie {title:"Top Gun", released:1986, tagline:'I feel the need, the need for speed.'})
      CREATE (KellyM:Person {name:'Kelly McGillis', born:1957})
      CREATE (ValK:Person {name:'Val Kilmer', born:1959})
      CREATE (AnthonyE:Person {name:'Anthony Edwards', born:1962})
      CREATE (TomS:Person {name:'Tom Skerritt', born:1933})
      CREATE (MegR:Person {name:'Meg Ryan', born:1961})
      CREATE (TonyS:Person {name:'Tony Scott', born:1944})
      CREATE (JimC:Person {name:'Jim Cash', born:1941})
      CREATE
      (TomC)-[:ACTED_IN {roles:['Maverick']}]->(TopGun),
      (KellyM)-[:ACTED_IN {roles:['Charlie']}]->(TopGun),
      (ValK)-[:ACTED_IN {roles:['Iceman']}]->(TopGun),
      (AnthonyE)-[:ACTED_IN {roles:['Goose']}]->(TopGun),
      (TomS)-[:ACTED_IN {roles:['Viper']}]->(TopGun),
      (MegR)-[:ACTED_IN {roles:['Carole']}]->(TopGun),
      (TonyS)-[:DIRECTED]->(TopGun),
      (JimC)-[:WROTE]->(TopGun)

      CREATE (JerryMaguire:Movie {title:'Jerry Maguire', released:2000, tagline:'The rest of his life begins now.'})
      CREATE (ReneeZ:Person {name:'Renee Zellweger', born:1969})
      CREATE (KellyP:Person {name:'Kelly Preston', born:1962})
      CREATE (JerryO:Person {name:"Jerry O'Connell", born:1974})
      CREATE (JayM:Person {name:'Jay Mohr', born:1970})
      CREATE (BonnieH:Person {name:'Bonnie Hunt', born:1961})
      CREATE (ReginaK:Person {name:'Regina King', born:1971})
      CREATE (JonathanL:Person {name:'Jonathan Lipnicki', born:1996})
      CREATE (CameronC:Person {name:'Cameron Crowe', born:1957})
      CREATE
      (TomC)-[:ACTED_IN {roles:['Jerry Maguire']}]->(JerryMaguire),
      (CubaG)-[:ACTED_IN {roles:['Rod Tidwell']}]->(JerryMaguire),
      (ReneeZ)-[:ACTED_IN {roles:['Dorothy Boyd']}]->(JerryMaguire),
      (KellyP)-[:ACTED_IN {roles:['Avery Bishop']}]->(JerryMaguire),
      (JerryO)-[:ACTED_IN {roles:['Frank Cushman']}]->(JerryMaguire),
      (JayM)-[:ACTED_IN {roles:['Bob Sugar']}]->(JerryMaguire),
      (BonnieH)-[:ACTED_IN {roles:['Laurel Boyd']}]->(JerryMaguire),
      (ReginaK)-[:ACTED_IN {roles:['Marcee Tidwell']}]->(JerryMaguire),
      (JonathanL)-[:ACTED_IN {roles:['Ray Boyd']}]->(JerryMaguire),
      (CameronC)-[:DIRECTED]->(JerryMaguire),
      (CameronC)-[:PRODUCED]->(JerryMaguire),
      (CameronC)-[:WROTE]->(JerryMaguire)

      CREATE (StandByMe:Movie {title:"Stand By Me", released:1986, tagline:"For some, it's the last real taste of innocence, and the first real taste of life. But for everyone, it's the time that memories are made of."})
      CREATE (RiverP:Person {name:'River Phoenix', born:1970})
      CREATE (CoreyF:Person {name:'Corey Feldman', born:1971})
      CREATE (WilW:Person {name:'Wil Wheaton', born:1972})
      CREATE (JohnC:Person {name:'John Cusack', born:1966})
      CREATE (MarshallB:Person {name:'Marshall Bell', born:1942})
      CREATE
      (WilW)-[:ACTED_IN {roles:['Gordie Lachance']}]->(StandByMe),
      (RiverP)-[:ACTED_IN {roles:['Chris Chambers']}]->(StandByMe),
      (JerryO)-[:ACTED_IN {roles:['Vern Tessio']}]->(StandByMe),
      (CoreyF)-[:ACTED_IN {roles:['Teddy Duchamp']}]->(StandByMe),
      (JohnC)-[:ACTED_IN {roles:['Denny Lachance']}]->(StandByMe),
      (KieferS)-[:ACTED_IN {roles:['Ace Merrill']}]->(StandByMe),
      (MarshallB)-[:ACTED_IN {roles:['Mr. Lachance']}]->(StandByMe),
      (RobR)-[:DIRECTED]->(StandByMe)

      CREATE (AsGoodAsItGets:Movie {title:'As Good as It Gets', released:1997, tagline:'A comedy from the heart that goes for the throat.'})
      CREATE (HelenH:Person {name:'Helen Hunt', born:1963})
      CREATE (GregK:Person {name:'Greg Kinnear', born:1963})
      CREATE (JamesB:Person {name:'James L. Brooks', born:1940})
      CREATE
      (JackN)-[:ACTED_IN {roles:['Melvin Udall']}]->(AsGoodAsItGets),
      (HelenH)-[:ACTED_IN {roles:['Carol Connelly']}]->(AsGoodAsItGets),
      (GregK)-[:ACTED_IN {roles:['Simon Bishop']}]->(AsGoodAsItGets),
      (CubaG)-[:ACTED_IN {roles:['Frank Sachs']}]->(AsGoodAsItGets),
      (JamesB)-[:DIRECTED]->(AsGoodAsItGets)

      CREATE (WhatDreamsMayCome:Movie {title:'What Dreams May Come', released:1998, tagline:'After life there is more. The end is just the beginning.'})
      CREATE (AnnabellaS:Person {name:'Annabella Sciorra', born:1960})
      CREATE (MaxS:Person {name:'Max von Sydow', born:1929})
      CREATE (WernerH:Person {name:'Werner Herzog', born:1942})
      CREATE (Robin:Person {name:'Robin Williams', born:1951})
      CREATE (VincentW:Person {name:'Vincent Ward', born:1956})
      CREATE
      (Robin)-[:ACTED_IN {roles:['Chris Nielsen']}]->(WhatDreamsMayCome),
      (CubaG)-[:ACTED_IN {roles:['Albert Lewis']}]->(WhatDreamsMayCome),
      (AnnabellaS)-[:ACTED_IN {roles:['Annie Collins-Nielsen']}]->(WhatDreamsMayCome),
      (MaxS)-[:ACTED_IN {roles:['The Tracker']}]->(WhatDreamsMayCome),
      (WernerH)-[:ACTED_IN {roles:['The Face']}]->(WhatDreamsMayCome),
      (VincentW)-[:DIRECTED]->(WhatDreamsMayCome)

      CREATE (SnowFallingonCedars:Movie {title:'Snow Falling on Cedars', released:1999, tagline:'First loves last. Forever.'})
      CREATE (EthanH:Person {name:'Ethan Hawke', born:1970})
      CREATE (RickY:Person {name:'Rick Yune', born:1971})
      CREATE (JamesC:Person {name:'James Cromwell', born:1940})
      CREATE (ScottH:Person {name:'Scott Hicks', born:1953})
      CREATE
      (EthanH)-[:ACTED_IN {roles:['Ishmael Chambers']}]->(SnowFallingonCedars),
      (RickY)-[:ACTED_IN {roles:['Kazuo Miyamoto']}]->(SnowFallingonCedars),
      (MaxS)-[:ACTED_IN {roles:['Nels Gudmundsson']}]->(SnowFallingonCedars),
      (JamesC)-[:ACTED_IN {roles:['Judge Fielding']}]->(SnowFallingonCedars),
      (ScottH)-[:DIRECTED]->(SnowFallingonCedars)

      CREATE (YouveGotMail:Movie {title:"You've Got Mail", released:1998, tagline:'At odds in life... in love on-line.'})
      CREATE (ParkerP:Person {name:'Parker Posey', born:1968})
      CREATE (DaveC:Person {name:'Dave Chappelle', born:1973})
      CREATE (SteveZ:Person {name:'Steve Zahn', born:1967})
      CREATE (TomH:Person {name:'Tom Hanks', born:1956})
      CREATE (NoraE:Person {name:'Nora Ephron', born:1941})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Joe Fox']}]->(YouveGotMail),
      (MegR)-[:ACTED_IN {roles:['Kathleen Kelly']}]->(YouveGotMail),
      (GregK)-[:ACTED_IN {roles:['Frank Navasky']}]->(YouveGotMail),
      (ParkerP)-[:ACTED_IN {roles:['Patricia Eden']}]->(YouveGotMail),
      (DaveC)-[:ACTED_IN {roles:['Kevin Jackson']}]->(YouveGotMail),
      (SteveZ)-[:ACTED_IN {roles:['George Pappas']}]->(YouveGotMail),
      (NoraE)-[:DIRECTED]->(YouveGotMail)

      CREATE (SleeplessInSeattle:Movie {title:'Sleepless in Seattle', released:1993, tagline:'What if someone you never met, someone you never saw, someone you never knew was the only someone for you?'})
      CREATE (RitaW:Person {name:'Rita Wilson', born:1956})
      CREATE (BillPull:Person {name:'Bill Pullman', born:1953})
      CREATE (VictorG:Person {name:'Victor Garber', born:1949})
      CREATE (RosieO:Person {name:"Rosie O'Donnell", born:1962})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Sam Baldwin']}]->(SleeplessInSeattle),
      (MegR)-[:ACTED_IN {roles:['Annie Reed']}]->(SleeplessInSeattle),
      (RitaW)-[:ACTED_IN {roles:['Suzy']}]->(SleeplessInSeattle),
      (BillPull)-[:ACTED_IN {roles:['Walter']}]->(SleeplessInSeattle),
      (VictorG)-[:ACTED_IN {roles:['Greg']}]->(SleeplessInSeattle),
      (RosieO)-[:ACTED_IN {roles:['Becky']}]->(SleeplessInSeattle),
      (NoraE)-[:DIRECTED]->(SleeplessInSeattle)

      CREATE (JoeVersustheVolcano:Movie {title:'Joe Versus the Volcano', released:1990, tagline:'A story of love, lava and burning desire.'})
      CREATE (JohnS:Person {name:'John Patrick Stanley', born:1950})
      CREATE (Nathan:Person {name:'Nathan Lane', born:1956})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Joe Banks']}]->(JoeVersustheVolcano),
      (MegR)-[:ACTED_IN {roles:['DeDe', 'Angelica Graynamore', 'Patricia Graynamore']}]->(JoeVersustheVolcano),
      (Nathan)-[:ACTED_IN {roles:['Baw']}]->(JoeVersustheVolcano),
      (JohnS)-[:DIRECTED]->(JoeVersustheVolcano)

      CREATE (WhenHarryMetSally:Movie {title:'When Harry Met Sally', released:1998, tagline:'Can two friends sleep together and still love each other in the morning?'})
      CREATE (BillyC:Person {name:'Billy Crystal', born:1948})
      CREATE (CarrieF:Person {name:'Carrie Fisher', born:1956})
      CREATE (BrunoK:Person {name:'Bruno Kirby', born:1949})
      CREATE
      (BillyC)-[:ACTED_IN {roles:['Harry Burns']}]->(WhenHarryMetSally),
      (MegR)-[:ACTED_IN {roles:['Sally Albright']}]->(WhenHarryMetSally),
      (CarrieF)-[:ACTED_IN {roles:['Marie']}]->(WhenHarryMetSally),
      (BrunoK)-[:ACTED_IN {roles:['Jess']}]->(WhenHarryMetSally),
      (RobR)-[:DIRECTED]->(WhenHarryMetSally),
      (RobR)-[:PRODUCED]->(WhenHarryMetSally),
      (NoraE)-[:PRODUCED]->(WhenHarryMetSally),
      (NoraE)-[:WROTE]->(WhenHarryMetSally)

      CREATE (ThatThingYouDo:Movie {title:'That Thing You Do', released:1996, tagline:'In every life there comes a time when that thing you dream becomes that thing you do'})
      CREATE (LivT:Person {name:'Liv Tyler', born:1977})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Mr. White']}]->(ThatThingYouDo),
      (LivT)-[:ACTED_IN {roles:['Faye Dolan']}]->(ThatThingYouDo),
      (Charlize)-[:ACTED_IN {roles:['Tina']}]->(ThatThingYouDo),
      (TomH)-[:DIRECTED]->(ThatThingYouDo)

      CREATE (TheReplacements:Movie {title:'The Replacements', released:2000, tagline:'Pain heals, Chicks dig scars... Glory lasts forever'})
      CREATE (Brooke:Person {name:'Brooke Langton', born:1970})
      CREATE (Gene:Person {name:'Gene Hackman', born:1930})
      CREATE (Orlando:Person {name:'Orlando Jones', born:1968})
      CREATE (Howard:Person {name:'Howard Deutch', born:1950})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Shane Falco']}]->(TheReplacements),
      (Brooke)-[:ACTED_IN {roles:['Annabelle Farrell']}]->(TheReplacements),
      (Gene)-[:ACTED_IN {roles:['Jimmy McGinty']}]->(TheReplacements),
      (Orlando)-[:ACTED_IN {roles:['Clifford Franklin']}]->(TheReplacements),
      (Howard)-[:DIRECTED]->(TheReplacements)

      CREATE (RescueDawn:Movie {title:'RescueDawn', released:2006, tagline:"Based on the extraordinary true story of one man's fight for freedom"})
      CREATE (ChristianB:Person {name:'Christian Bale', born:1974})
      CREATE (ZachG:Person {name:'Zach Grenier', born:1954})
      CREATE
      (MarshallB)-[:ACTED_IN {roles:['Admiral']}]->(RescueDawn),
      (ChristianB)-[:ACTED_IN {roles:['Dieter Dengler']}]->(RescueDawn),
      (ZachG)-[:ACTED_IN {roles:['Squad Leader']}]->(RescueDawn),
      (SteveZ)-[:ACTED_IN {roles:['Duane']}]->(RescueDawn),
      (WernerH)-[:DIRECTED]->(RescueDawn)

      CREATE (TheBirdcage:Movie {title:'The Birdcage', released:1996, tagline:'Come as you are'})
      CREATE (MikeN:Person {name:'Mike Nichols', born:1931})
      CREATE
      (Robin)-[:ACTED_IN {roles:['Armand Goldman']}]->(TheBirdcage),
      (Nathan)-[:ACTED_IN {roles:['Albert Goldman']}]->(TheBirdcage),
      (Gene)-[:ACTED_IN {roles:['Sen. Kevin Keeley']}]->(TheBirdcage),
      (MikeN)-[:DIRECTED]->(TheBirdcage)

      CREATE (Unforgiven:Movie {title:'Unforgiven', released:1992, tagline:"It's a hell of a thing, killing a man"})
      CREATE (RichardH:Person {name:'Richard Harris', born:1930})
      CREATE (ClintE:Person {name:'Clint Eastwood', born:1930})
      CREATE
      (RichardH)-[:ACTED_IN {roles:['English Bob']}]->(Unforgiven),
      (ClintE)-[:ACTED_IN {roles:['Bill Munny']}]->(Unforgiven),
      (Gene)-[:ACTED_IN {roles:['Little Bill Daggett']}]->(Unforgiven),
      (ClintE)-[:DIRECTED]->(Unforgiven)

      CREATE (JohnnyMnemonic:Movie {title:'Johnny Mnemonic', released:1995, tagline:'The hottest data on earth. In the coolest head in town'})
      CREATE (Takeshi:Person {name:'Takeshi Kitano', born:1947})
      CREATE (Dina:Person {name:'Dina Meyer', born:1968})
      CREATE (IceT:Person {name:'Ice-T', born:1958})
      CREATE (RobertL:Person {name:'Robert Longo', born:1953})
      CREATE
      (Keanu)-[:ACTED_IN {roles:['Johnny Mnemonic']}]->(JohnnyMnemonic),
      (Takeshi)-[:ACTED_IN {roles:['Takahashi']}]->(JohnnyMnemonic),
      (Dina)-[:ACTED_IN {roles:['Jane']}]->(JohnnyMnemonic),
      (IceT)-[:ACTED_IN {roles:['J-Bone']}]->(JohnnyMnemonic),
      (RobertL)-[:DIRECTED]->(JohnnyMnemonic)

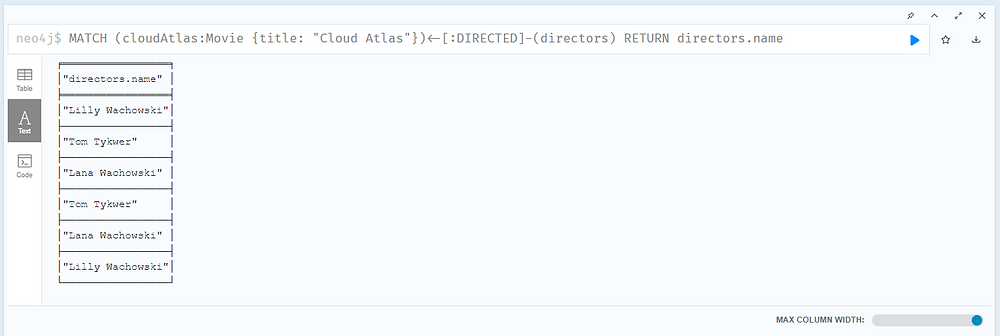

      CREATE (CloudAtlas:Movie {title:'Cloud Atlas', released:2012, tagline:'Everything is connected'})
      CREATE (HalleB:Person {name:'Halle Berry', born:1966})
      CREATE (JimB:Person {name:'Jim Broadbent', born:1949})
      CREATE (TomT:Person {name:'Tom Tykwer', born:1965})
      CREATE (DavidMitchell:Person {name:'David Mitchell', born:1969})
      CREATE (StefanArndt:Person {name:'Stefan Arndt', born:1961})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Zachry', 'Dr. Henry Goose', 'Isaac Sachs', 'Dermot Hoggins']}]->(CloudAtlas),
      (Hugo)-[:ACTED_IN {roles:['Bill Smoke', 'Haskell Moore', 'Tadeusz Kesselring', 'Nurse Noakes', 'Boardman Mephi', 'Old Georgie']}]->(CloudAtlas),
      (HalleB)-[:ACTED_IN {roles:['Luisa Rey', 'Jocasta Ayrs', 'Ovid', 'Meronym']}]->(CloudAtlas),
      (JimB)-[:ACTED_IN {roles:['Vyvyan Ayrs', 'Captain Molyneux', 'Timothy Cavendish']}]->(CloudAtlas),
      (TomT)-[:DIRECTED]->(CloudAtlas),
      (LillyW)-[:DIRECTED]->(CloudAtlas),
      (LanaW)-[:DIRECTED]->(CloudAtlas),
      (DavidMitchell)-[:WROTE]->(CloudAtlas),
      (StefanArndt)-[:PRODUCED]->(CloudAtlas)

      CREATE (TheDaVinciCode:Movie {title:'The Da Vinci Code', released:2006, tagline:'Break The Codes'})
      CREATE (IanM:Person {name:'Ian McKellen', born:1939})
      CREATE (AudreyT:Person {name:'Audrey Tautou', born:1976})
      CREATE (PaulB:Person {name:'Paul Bettany', born:1971})
      CREATE (RonH:Person {name:'Ron Howard', born:1954})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Dr. Robert Langdon']}]->(TheDaVinciCode),
      (IanM)-[:ACTED_IN {roles:['Sir Leight Teabing']}]->(TheDaVinciCode),
      (AudreyT)-[:ACTED_IN {roles:['Sophie Neveu']}]->(TheDaVinciCode),
      (PaulB)-[:ACTED_IN {roles:['Silas']}]->(TheDaVinciCode),
      (RonH)-[:DIRECTED]->(TheDaVinciCode)

      CREATE (VforVendetta:Movie {title:'V for Vendetta', released:2006, tagline:'Freedom! Forever!'})
      CREATE (NatalieP:Person {name:'Natalie Portman', born:1981})
      CREATE (StephenR:Person {name:'Stephen Rea', born:1946})
      CREATE (JohnH:Person {name:'John Hurt', born:1940})
      CREATE (BenM:Person {name: 'Ben Miles', born:1967})
      CREATE
      (Hugo)-[:ACTED_IN {roles:['V']}]->(VforVendetta),
      (NatalieP)-[:ACTED_IN {roles:['Evey Hammond']}]->(VforVendetta),
      (StephenR)-[:ACTED_IN {roles:['Eric Finch']}]->(VforVendetta),
      (JohnH)-[:ACTED_IN {roles:['High Chancellor Adam Sutler']}]->(VforVendetta),
      (BenM)-[:ACTED_IN {roles:['Dascomb']}]->(VforVendetta),
      (JamesM)-[:DIRECTED]->(VforVendetta),
      (LillyW)-[:PRODUCED]->(VforVendetta),
      (LanaW)-[:PRODUCED]->(VforVendetta),
      (JoelS)-[:PRODUCED]->(VforVendetta),
      (LillyW)-[:WROTE]->(VforVendetta),
      (LanaW)-[:WROTE]->(VforVendetta)

      CREATE (SpeedRacer:Movie {title:'Speed Racer', released:2008, tagline:'Speed has no limits'})
      CREATE (EmileH:Person {name:'Emile Hirsch', born:1985})
      CREATE (JohnG:Person {name:'John Goodman', born:1960})
      CREATE (SusanS:Person {name:'Susan Sarandon', born:1946})
      CREATE (MatthewF:Person {name:'Matthew Fox', born:1966})
      CREATE (ChristinaR:Person {name:'Christina Ricci', born:1980})
      CREATE (Rain:Person {name:'Rain', born:1982})
      CREATE
      (EmileH)-[:ACTED_IN {roles:['Speed Racer']}]->(SpeedRacer),
      (JohnG)-[:ACTED_IN {roles:['Pops']}]->(SpeedRacer),
      (SusanS)-[:ACTED_IN {roles:['Mom']}]->(SpeedRacer),
      (MatthewF)-[:ACTED_IN {roles:['Racer X']}]->(SpeedRacer),
      (ChristinaR)-[:ACTED_IN {roles:['Trixie']}]->(SpeedRacer),
      (Rain)-[:ACTED_IN {roles:['Taejo Togokahn']}]->(SpeedRacer),
      (BenM)-[:ACTED_IN {roles:['Cass Jones']}]->(SpeedRacer),
      (LillyW)-[:DIRECTED]->(SpeedRacer),
      (LanaW)-[:DIRECTED]->(SpeedRacer),
      (LillyW)-[:WROTE]->(SpeedRacer),
      (LanaW)-[:WROTE]->(SpeedRacer),
      (JoelS)-[:PRODUCED]->(SpeedRacer)

      CREATE (NinjaAssassin:Movie {title:'Ninja Assassin', released:2009, tagline:'Prepare to enter a secret world of assassins'})
      CREATE (NaomieH:Person {name:'Naomie Harris'})
      CREATE
      (Rain)-[:ACTED_IN {roles:['Raizo']}]->(NinjaAssassin),
      (NaomieH)-[:ACTED_IN {roles:['Mika Coretti']}]->(NinjaAssassin),
      (RickY)-[:ACTED_IN {roles:['Takeshi']}]->(NinjaAssassin),
      (BenM)-[:ACTED_IN {roles:['Ryan Maslow']}]->(NinjaAssassin),
      (JamesM)-[:DIRECTED]->(NinjaAssassin),
      (LillyW)-[:PRODUCED]->(NinjaAssassin),
      (LanaW)-[:PRODUCED]->(NinjaAssassin),
      (JoelS)-[:PRODUCED]->(NinjaAssassin)

      CREATE (TheGreenMile:Movie {title:'The Green Mile', released:1999, tagline:"Walk a mile you'll never forget."})
      CREATE (MichaelD:Person {name:'Michael Clarke Duncan', born:1957})
      CREATE (DavidM:Person {name:'David Morse', born:1953})
      CREATE (SamR:Person {name:'Sam Rockwell', born:1968})
      CREATE (GaryS:Person {name:'Gary Sinise', born:1955})
      CREATE (PatriciaC:Person {name:'Patricia Clarkson', born:1959})
      CREATE (FrankD:Person {name:'Frank Darabont', born:1959})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Paul Edgecomb']}]->(TheGreenMile),
      (MichaelD)-[:ACTED_IN {roles:['John Coffey']}]->(TheGreenMile),
      (DavidM)-[:ACTED_IN {roles:['Brutus "Brutal" Howell']}]->(TheGreenMile),
      (BonnieH)-[:ACTED_IN {roles:['Jan Edgecomb']}]->(TheGreenMile),
      (JamesC)-[:ACTED_IN {roles:['Warden Hal Moores']}]->(TheGreenMile),
      (SamR)-[:ACTED_IN {roles:['"Wild Bill" Wharton']}]->(TheGreenMile),
      (GaryS)-[:ACTED_IN {roles:['Burt Hammersmith']}]->(TheGreenMile),
      (PatriciaC)-[:ACTED_IN {roles:['Melinda Moores']}]->(TheGreenMile),
      (FrankD)-[:DIRECTED]->(TheGreenMile)

      CREATE (FrostNixon:Movie {title:'Frost/Nixon', released:2008, tagline:'400 million people were waiting for the truth.'})
      CREATE (FrankL:Person {name:'Frank Langella', born:1938})
      CREATE (MichaelS:Person {name:'Michael Sheen', born:1969})
      CREATE (OliverP:Person {name:'Oliver Platt', born:1960})
      CREATE
      (FrankL)-[:ACTED_IN {roles:['Richard Nixon']}]->(FrostNixon),
      (MichaelS)-[:ACTED_IN {roles:['David Frost']}]->(FrostNixon),
      (KevinB)-[:ACTED_IN {roles:['Jack Brennan']}]->(FrostNixon),
      (OliverP)-[:ACTED_IN {roles:['Bob Zelnick']}]->(FrostNixon),
      (SamR)-[:ACTED_IN {roles:['James Reston, Jr.']}]->(FrostNixon),
      (RonH)-[:DIRECTED]->(FrostNixon)

      CREATE (Hoffa:Movie {title:'Hoffa', released:1992, tagline:"He didn't want law. He wanted justice."})
      CREATE (DannyD:Person {name:'Danny DeVito', born:1944})
      CREATE (JohnR:Person {name:'John C. Reilly', born:1965})
      CREATE
      (JackN)-[:ACTED_IN {roles:['Hoffa']}]->(Hoffa),
      (DannyD)-[:ACTED_IN {roles:['Robert "Bobby" Ciaro']}]->(Hoffa),
      (JTW)-[:ACTED_IN {roles:['Frank Fitzsimmons']}]->(Hoffa),
      (JohnR)-[:ACTED_IN {roles:['Peter "Pete" Connelly']}]->(Hoffa),
      (DannyD)-[:DIRECTED]->(Hoffa)

      CREATE (Apollo13:Movie {title:'Apollo 13', released:1995, tagline:'Houston, we have a problem.'})
      CREATE (EdH:Person {name:'Ed Harris', born:1950})
      CREATE (BillPax:Person {name:'Bill Paxton', born:1955})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Jim Lovell']}]->(Apollo13),
      (KevinB)-[:ACTED_IN {roles:['Jack Swigert']}]->(Apollo13),
      (EdH)-[:ACTED_IN {roles:['Gene Kranz']}]->(Apollo13),
      (BillPax)-[:ACTED_IN {roles:['Fred Haise']}]->(Apollo13),
      (GaryS)-[:ACTED_IN {roles:['Ken Mattingly']}]->(Apollo13),
      (RonH)-[:DIRECTED]->(Apollo13)

      CREATE (Twister:Movie {title:'Twister', released:1996, tagline:"Don't Breathe. Don't Look Back."})
      CREATE (PhilipH:Person {name:'Philip Seymour Hoffman', born:1967})
      CREATE (JanB:Person {name:'Jan de Bont', born:1943})
      CREATE
      (BillPax)-[:ACTED_IN {roles:['Bill Harding']}]->(Twister),
      (HelenH)-[:ACTED_IN {roles:['Dr. Jo Harding']}]->(Twister),
      (ZachG)-[:ACTED_IN {roles:['Eddie']}]->(Twister),
      (PhilipH)-[:ACTED_IN {roles:['Dustin "Dusty" Davis']}]->(Twister),
      (JanB)-[:DIRECTED]->(Twister)

      CREATE (CastAway:Movie {title:'Cast Away', released:2000, tagline:'At the edge of the world, his journey begins.'})
      CREATE (RobertZ:Person {name:'Robert Zemeckis', born:1951})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Chuck Noland']}]->(CastAway),
      (HelenH)-[:ACTED_IN {roles:['Kelly Frears']}]->(CastAway),
      (RobertZ)-[:DIRECTED]->(CastAway)

      CREATE (OneFlewOvertheCuckoosNest:Movie {title:"One Flew Over the Cuckoo's Nest", released:1975, tagline:"If he's crazy, what does that make you?"})
      CREATE (MilosF:Person {name:'Milos Forman', born:1932})
      CREATE
      (JackN)-[:ACTED_IN {roles:['Randle McMurphy']}]->(OneFlewOvertheCuckoosNest),
      (DannyD)-[:ACTED_IN {roles:['Martini']}]->(OneFlewOvertheCuckoosNest),
      (MilosF)-[:DIRECTED]->(OneFlewOvertheCuckoosNest)

      CREATE (SomethingsGottaGive:Movie {title:"Something's Gotta Give", released:2003})
      CREATE (DianeK:Person {name:'Diane Keaton', born:1946})
      CREATE (NancyM:Person {name:'Nancy Meyers', born:1949})
      CREATE
      (JackN)-[:ACTED_IN {roles:['Harry Sanborn']}]->(SomethingsGottaGive),
      (DianeK)-[:ACTED_IN {roles:['Erica Barry']}]->(SomethingsGottaGive),
      (Keanu)-[:ACTED_IN {roles:['Julian Mercer']}]->(SomethingsGottaGive),
      (NancyM)-[:DIRECTED]->(SomethingsGottaGive),
      (NancyM)-[:PRODUCED]->(SomethingsGottaGive),
      (NancyM)-[:WROTE]->(SomethingsGottaGive)

      CREATE (BicentennialMan:Movie {title:'Bicentennial Man', released:1999, tagline:"One robot's 200 year journey to become an ordinary man."})
      CREATE (ChrisC:Person {name:'Chris Columbus', born:1958})
      CREATE
      (Robin)-[:ACTED_IN {roles:['Andrew Marin']}]->(BicentennialMan),
      (OliverP)-[:ACTED_IN {roles:['Rupert Burns']}]->(BicentennialMan),
      (ChrisC)-[:DIRECTED]->(BicentennialMan)

      CREATE (CharlieWilsonsWar:Movie {title:"Charlie Wilson's War", released:2007, tagline:"A stiff drink. A little mascara. A lot of nerve. Who said they couldn't bring down the Soviet empire."})
      CREATE (JuliaR:Person {name:'Julia Roberts', born:1967})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Rep. Charlie Wilson']}]->(CharlieWilsonsWar),
      (JuliaR)-[:ACTED_IN {roles:['Joanne Herring']}]->(CharlieWilsonsWar),
      (PhilipH)-[:ACTED_IN {roles:['Gust Avrakotos']}]->(CharlieWilsonsWar),
      (MikeN)-[:DIRECTED]->(CharlieWilsonsWar)

      CREATE (ThePolarExpress:Movie {title:'The Polar Express', released:2004, tagline:'This Holiday Season... Believe'})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Hero Boy', 'Father', 'Conductor', 'Hobo', 'Scrooge', 'Santa Claus']}]->(ThePolarExpress),
      (RobertZ)-[:DIRECTED]->(ThePolarExpress)

      CREATE (ALeagueofTheirOwn:Movie {title:'A League of Their Own', released:1992, tagline:'Once in a lifetime you get a chance to do something different.'})
      CREATE (Madonna:Person {name:'Madonna', born:1954})
      CREATE (GeenaD:Person {name:'Geena Davis', born:1956})
      CREATE (LoriP:Person {name:'Lori Petty', born:1963})
      CREATE (PennyM:Person {name:'Penny Marshall', born:1943})
      CREATE
      (TomH)-[:ACTED_IN {roles:['Jimmy Dugan']}]->(ALeagueofTheirOwn),
      (GeenaD)-[:ACTED_IN {roles:['Dottie Hinson']}]->(ALeagueofTheirOwn),
      (LoriP)-[:ACTED_IN {roles:['Kit Keller']}]->(ALeagueofTheirOwn),
      (RosieO)-[:ACTED_IN {roles:['Doris Murphy']}]->(ALeagueofTheirOwn),
      (Madonna)-[:ACTED_IN {roles:['"All the Way" Mae Mordabito']}]->(ALeagueofTheirOwn),
      (BillPax)-[:ACTED_IN {roles:['Bob Hinson']}]->(ALeagueofTheirOwn),
      (PennyM)-[:DIRECTED]->(ALeagueofTheirOwn)

      CREATE (PaulBlythe:Person {name:'Paul Blythe'})
      CREATE (AngelaScope:Person {name:'Angela Scope'})
      CREATE (JessicaThompson:Person {name:'Jessica Thompson'})
      CREATE (JamesThompson:Person {name:'James Thompson'})

      CREATE
      (JamesThompson)-[:FOLLOWS]->(JessicaThompson),
      (AngelaScope)-[:FOLLOWS]->(JessicaThompson),
      (PaulBlythe)-[:FOLLOWS]->(AngelaScope)

      CREATE
      (JessicaThompson)-[:REVIEWED {summary:'An amazing journey', rating:95}]->(CloudAtlas),
      (JessicaThompson)-[:REVIEWED {summary:'Silly, but fun', rating:65}]->(TheReplacements),
      (JamesThompson)-[:REVIEWED {summary:'The coolest football movie ever', rating:100}]->(TheReplacements),
      (AngelaScope)-[:REVIEWED {summary:'Pretty funny at times', rating:62}]->(TheReplacements),
      (JessicaThompson)-[:REVIEWED {summary:'Dark, but compelling', rating:85}]->(Unforgiven),
      (JessicaThompson)-[:REVIEWED {summary:"Slapstick redeemed only by the Robin Williams and Gene Hackman's stellar performances", rating:45}]->(TheBirdcage),
      (JessicaThompson)-[:REVIEWED {summary:'A solid romp', rating:68}]->(TheDaVinciCode),
      (JamesThompson)-[:REVIEWED {summary:'Fun, but a little far fetched', rating:65}]->(TheDaVinciCode),
      (JessicaThompson)-[:REVIEWED {summary:'You had me at Jerry', rating:92}]->(JerryMaguire)

      WITH TomH as a
      MATCH (a)-[:ACTED_IN]->(m)<-[:DIRECTED]-(d) RETURN a,m,d LIMIT 10;


Create constraints

Unique node property constraints

Create unique node property constraints to ensure that property values are unique for all nodes with a specific label. Adding the unique constraint implicitly adds an index on that property.

CREATE CONSTRAINT ON (n:Movie) ASSERT (n.title) IS UNIQUE
CREATE CONSTRAINT ON (n:Person) ASSERT (n.name) IS UNIQUE

Index nodes

Create indexes on one or more properties for all nodes that have a given label. Indexes are used to increase search performance.

CREATE INDEX FOR (m:Movie) ON (m.released)

Find

Find individual nodes

  1. Run any of the following query examples.

  2. Notice the syntax pattern.

  3. Try looking for other movies or actors.


Find the actor named "Tom Hanks":

MATCH (tom:Person {name: "Tom Hanks"}) RETURN tom


Find the movie with the title "Cloud Atlas":

MATCH (cloudAtlas:Movie {title: "Cloud Atlas"}) RETURN cloudAtlas




Find 10 people and return their names:

MATCH (people:Person) RETURN people.name LIMIT 10


Find movies released in the 1990s and return their titles.


MATCH (nineties:Movie) WHERE nineties.released >= 1990 AND nineties.released < 2000 RETURN nineties.title



Query

Find patterns


Use the type of the relationship to find patterns within the graph, for example, ACTED_IN or DIRECTED. What other relationships exist?


What movies did Tom Hanks act in?


MATCH (tom:Person {name: "Tom Hanks"})-[:ACTED_IN]->(tomHanksMovies) RETURN tom,tomHanksMovies


Who directed "Cloud Atlas"?


MATCH (cloudAtlas:Movie {title: "Cloud Atlas"})<-[:DIRECTED]-(directors) RETURN directors.name


Who were Tom Hanks' co-actors?


MATCH (tom:Person {name:"Tom Hanks"})-[:ACTED_IN]->(m)<-[:ACTED_IN]-(coActors) RETURN DISTINCT coActors.name


How people are related to "Cloud Atlas"?


MATCH (people:Person)-[relatedTo]-(:Movie {title: "Cloud Atlas"}) RETURN people.name, Type(relatedTo), relatedTo.roles



Solve

Six Degrees of Kevin Bacon


You might have heard of the classic "Six Degrees of Kevin Bacon". That is simply the shortest path between two nodes, called the "Bacon Path".


Use variable length patterns to find movies and actors up to 4 "hops" away from Kevin Bacon.


MATCH (bacon:Person {name:"Kevin Bacon"})-[*1..4]-(hollywood)
RETURN DISTINCT hollywood


Use the built-in shortestPath() algorithm to find the "Bacon Path" to Meg Ryan.


MATCH p=shortestPath(
(bacon:Person {name:"Kevin Bacon"})-[*]-(meg:Person {name:"Meg Ryan"})
)
RETURN p



Recommend

Recommend new co-actors


Let's recommend new co-actors for Tom Hanks. A basic recommendation approach is to find connections past an immediate neighborhood that are themselves well connected.


For Tom Hanks, that means:


Extend Tom Hanks co-actors to find co-co-actors who have nоt worked with Tom Hanks.


MATCH (tom:Person {name:"Tom Hanks"})-[:ACTED_IN]->(m)<-[:ACTED_IN]-(coActors),
    (coActors)-[:ACTED_IN]->(m2)<-[:ACTED_IN]-(cocoActors)
  WHERE NOT (tom)-[:ACTED_IN]->()<-[:ACTED_IN]-(cocoActors) AND tom <> cocoActors
  RETURN cocoActors.name AS Recommended, count(*) AS Strength ORDER BY Strength DESC


Find someone who can introduce Tom Hanks to his potential co-actor, in this case, Tom Cruise.


MATCH (tom:Person {name:"Tom Hanks"})-[:ACTED_IN]->(m)<-[:ACTED_IN]-(coActors),
  (coActors)-[:ACTED_IN]->(m2)<-[:ACTED_IN]-(cruise:Person {name:"Tom Cruise"})
RETURN tom, m, coActors, m2, cruise

Clean up

Remove the movie data set


When you are done experimenting, you can clean up your graph.


NOTE: Nodes cannot be deleted if they have relationships, so you need to detach the nodes to delete them.


Delete all Movie and Person nodes, and their relationships.


MATCH (n) DETACH DELETE n


Verify that the Movie Graph has been removed.


MATCH (n) RETURN n


Example:


Northwind Graph Guide

From RDBMS to Graph using a classic dataset


The Northwind Graph demonstrates how to migrate from a relational database to Neo4j. The transformation is iterative and deliberate, emphasizing the conceptual shift from relational tables to nodes and relationships.


This guide shows how to:


Load: Load data from external CSV files.

Index: Index nodes based on their labels.

Relate: Transform foreign key references into data relationships.

Promote: Transform join records into relationships.


Load product catalog

Load the product catalog data from external CSV files


Northwind sells food products in a few categories provided by suppliers. Let's start by loading the product catalog tables.





The load statements to the right require public internet access.LOAD CSV retrieves a CSV file from a valid URL by applying a Cypher statement to each row using a named map. This example uses the name row.


LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/products.csv" AS row
CREATE (n:Product)
SET n = row,
n.unitPrice = toFloat(row.unitPrice),
n.unitsInStock = toInteger(row.unitsInStock), n.unitsOnOrder = toInteger(row.unitsOnOrder),
n.reorderLevel = toInteger(row.reorderLevel), n.discontinued = (row.discontinued <> "0")


Load category data.



LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/categories.csv" AS row
CREATE (n:Category)
SET n = row

Load supplier data.


LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/suppliers.csv" AS row
CREATE (n:Supplier)
SET n = row

Index product catalog data

Create node indexes based on labels


CREATE INDEX FOR (p:Product) ON (p.productID)
CREATE INDEX FOR (p:Product) ON (p.productName)
CREATE INDEX FOR (c:Category) ON (c.categoryID)
CREATE INDEX FOR (s:Supplier) ON (s.supplierID)


Relate product catalog data

Transform foreign key references into data relationships


The products, categories, and suppliers are related through foreign key references. Let's promote those to data relationships to realize the graph.




MATCH (p:Product),(c:Category)
WHERE p.categoryID = c.categoryID
CREATE (p)-[:PART_OF]->(c)



MATCH (p:Product),(s:Supplier)
WHERE p.supplierID = s.supplierID
CREATE (s)-[:SUPPLIES]->(p)


Load customer orders

Load customer orders data from external CSV files


Northwind customers place orders, which may detail multiple products.



LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/customers.csv" AS row
CREATE (n:Customer)
SET n = row
Load order data.





LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/orders.csv" AS row
CREATE (n:Order)
SET n = row


Index customer orders data

Create node indexes based on label


CREATE INDEX FOR (n:Customer) ON (n.customerID)
CREATE INDEX FOR (o:Order) ON (o.orderID)


Relate customer orders data

Create releationships between customers and orders



MATCH (n:Customer),(o:Order)
WHERE n.customerID = o.customerID
CREATE (n)-[:PURCHASED]->(o)


Promote customer orders data

Transform join records into relationships


Notice that Order Details are always part of an order and that they relate the Order to a Product — they are a join table. Join tables are always a sign of a data relationship, indicating shared information between two other records.


Here, you directly promote each OrderDetail record into a relationship in the graph.




LOAD CSV WITH HEADERS FROM "http://data.neo4j.com/northwind/order-details.csv" AS row
MATCH (p:Product), (o:Order)
WHERE p.productID = row.productID AND o.orderID = row.orderID
CREATE (o)-[details:ORDERS]->(p)
SET details = row,
details.quantity = toInteger(row.quantity)




Query the Northwind graph

Query patterns


How many products did each customer purchase?


MATCH (cust:Customer)-[:PURCHASED]->(:Order)-[o:ORDERS]->(p:Product),
  (p)-[:PART_OF]->(c:Category {categoryName:"Produce"})
RETURN DISTINCT cust.contactName as CustomerName, SUM(o.quantity) AS TotalProductsPurchased


Related Posts

Heading 2

Add paragraph text. Click “Edit Text” to customize this theme across your site. You can update and reuse text themes.

bottom of page
